What Was Hiding Behind That Dark Cover Plate?

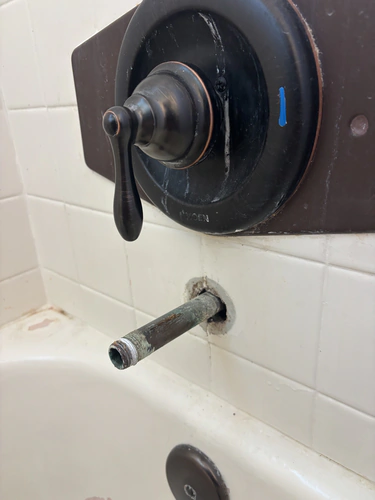

An oversized hole in the tile, and a piece of pipe that had rotted most of the way through. That rectangular bronze plate was never a styling decision. Somebody opened the wall to get at the valve years ago, and the plate went on afterward to cover what was left behind. It works. It also tells you the valve has already been serviced at least once.
The real trouble sits below it. That short stub is the nipple the tub spout threads onto, and this one had gone green and pitted right at the end where the threads live. Spouts do not seal on damaged threads. You can buy the nicest spout on the shelf, thread it onto a nipple in that shape, and water will still find its way behind the tile within a season or two.
The blue tape mark on the plate was ours, noting the cold side before the trim came off. It is a habit rather than a requirement.
Older bathrooms across Orlando are full of this exact combination. Sound tile, a valve that still works, and a spout connection that quietly gave up somewhere nobody was looking. It is one of the more common calls on our plumbing services list, and it almost never needs the wall opened.
What Goes In When the Trim, Nipple and Spout All Get Replaced?
A chrome trim kit on an escutcheon wide enough to cover the old opening, a new brass nipple, and a diverter spout to match. Three pieces. No tile touched.
The oval escutcheon is doing quiet work here. It has to span the same footprint that rectangular plate was covering, which is the whole reason the wall stayed where it was. Nipple length is the other measurement nobody thinks about until it is wrong. Cut it long and the spout stands proud with a gap behind it that collects everything, cut it short and it bottoms out before it seats against the tile. Neither is fixable with caulk. We size it off the finished tile face rather than off the framing, because those are rarely the same number.
Look closely at the stem behind the handle and there is a red and blue arc. That is the rotational limit stop on the pressure balancing cartridge, and it decides how far toward hot the lever can travel. We set it with the water running. The tub waste and overflow plate went chrome at the same time, so nothing in the alcove was left in the old finish.
Why Does a Tub Spout Nipple Corrode Before Anything Else?
Because it is the most exposed piece of pipe in the house, and it usually has two different metals threaded together at one end. A galvanized steel nipple screwed into a brass or copper drop ell sets up a slow reaction wherever the two touch and water is present. Add a daily soak, a daily dry out, soap, and whatever cleaner gets sprayed on the tile above it. The steel loses. That is also why the failure shows up at the threads first rather than in the middle of the run, and why by the time you can see green at the end of a nipple, the metal you cannot see has usually gone further than the metal you can.
Brass is what goes back in. It costs a few dollars more than steel and it does not do this, which is why Herrell Plumbing has been putting brass back in Central Florida walls since 1970. One other thing worth knowing before you buy a spout: some thread onto a nipple like this one, and some slide over a bare half inch copper stub and lock with a set screw underneath. They are not interchangeable, and the box does not always make it obvious which one you are holding.
Should You Replace the Whole Valve or Just the Trim?
If the valve holds temperature and does not drip, trim only. That is the cheaper job by a wide margin and it is exactly what happened here. Trim is the visible set: handle, escutcheon, sleeve, and the screws holding it to the valve. The valve body is the brass casting inside the wall that the hot and cold lines connect to.
Changing trim means unscrewing the old and screwing on the new. Changing the body means opening the wall, and on a tiled alcove that turns a service call into a small remodel with a tile hunt attached. So the honest first question is never which trim you like. It is whether the body still works.
The catch is that trim is not universal. Every manufacturer builds its own family and a trim kit only fits the body it was designed for. Before you order anything, find out what is in the wall. Pull the handle and look for a name cast into the cartridge retainer, or call and describe it to us. If your actual complaint is that the shower runs hot and then cold on its own, the valve is often not the culprit and the water heater is the better place to start. Either way, ten minutes with a plumber in Orlando beats guessing at the parts counter.
Shower Trim Looking Tired? Find Out What Is Behind It First.
Most tub and shower jobs are smaller than people expect, and the ones that are not usually announce themselves early. Tell us what brand is on the handle, what the tile looks like, and whether the spout still seals. We can tell you over the phone whether you are looking at a trim kit or a wall.
