Why Does a Cast Iron Drain Rot Out Inside a Block Wall?
Age, mostly, and the fact that nobody can see it happening. Cast iron rusts from the inside out, and when the pipe is buried in a concrete block wall, the first clue is usually a smell, a damp patch low on the wall, or a kitchen sink that starts acting strange.
This downtown Orlando house drained its kitchen sink through a cast iron waste arm. That is the short horizontal run between the sink trap and the main drain stack, and here it passed straight through the exterior block wall to a stack in the corner. Short pipe. Hard life. It carries every pot of pasta water, every rinse of coffee grounds, and every bit of grease that slips past the strainer.

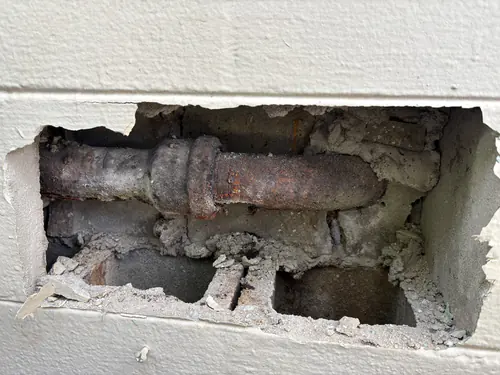

We opened the wall from the outside instead of pulling the kitchen cabinets. On a block house that is usually the easier side to put back together. Behind the paint we found the pipe in the photo, crusted and flaking, packed in mortar that was laid around it decades ago.
Herrell Plumbing has been opening walls like this one since 1970, and on older homes the story rarely changes.
What Does a Rotted Cast Iron Waste Arm Look Like?

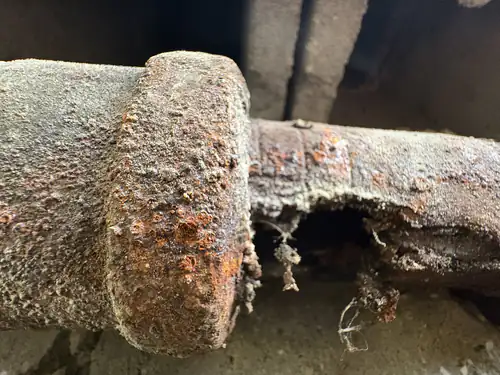

From the top, rusty but whole. From underneath, gone.
That is how cast iron usually fails on a horizontal run. Water and waste ride along the bottom of the pipe, so the bottom corrodes first, sometimes for years, while the top still looks solid enough to fool anyone who glances at it. Plumbers call it channel rot. On this arm it had eaten through right next to the hub, the bell shaped joint where two lengths of cast iron fit together.
Once a drain is open like that, part of every sink full of water ends up in the wall cavity instead of the sewer. It soaks the block and it feeds the smell. Insects find the opening too, and roaches coming from under the sink are often what makes a homeowner call.
There is no honest patch for this. Tape or epoxy over the hole holds for a while, but the metal around it is just as thin. If your kitchen sink keeps backing up and drain cleaning only buys you a few weeks, a rotted waste arm is one of the first things we look for.
How Do You Connect New PVC to an Old Cast Iron Stack?
With shielded couplings, clamped onto clean, sound cast iron above and below the new fitting.

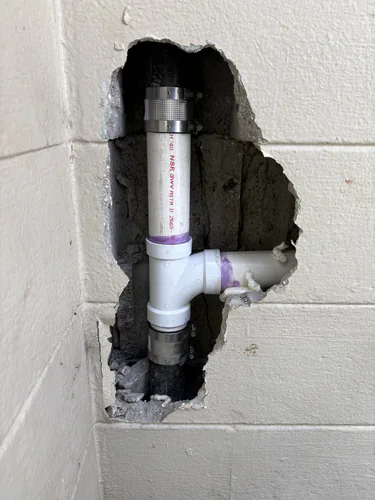

We cut out the rotted waste arm along with the section of stack it fed into. The new connection is Schedule 40 PVC DWV, the white drain pipe you can see stamped ASTM D2665 in the photo, with a new sanitary tee to pick up the kitchen line. Above and below the tee, stainless steel shielded no hub couplings join the PVC to the original cast iron. Each one squeezes a rubber sleeve around both pipes, and the steel band around it keeps the joint straight so it cannot sag or shift.

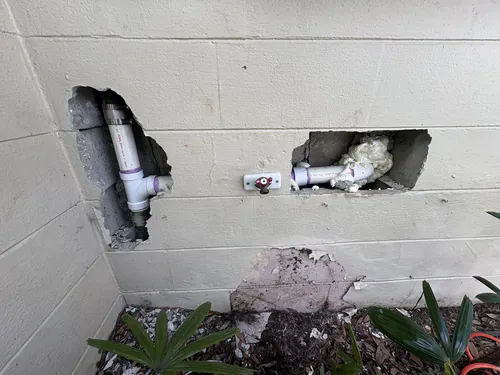

The new waste arm runs back through the block to the kitchen. Where it passes through the wall we filled the gap with expanding foam, which closes the cavity off from outside air and bugs.
Then we ran the sink and watched every joint before anything got closed in. Dry couplings, dry tee. Targeted drain repairs like this are a regular part of our plumbing services across Orange County.
What Changes Under the Sink After a Waste Arm Replacement?

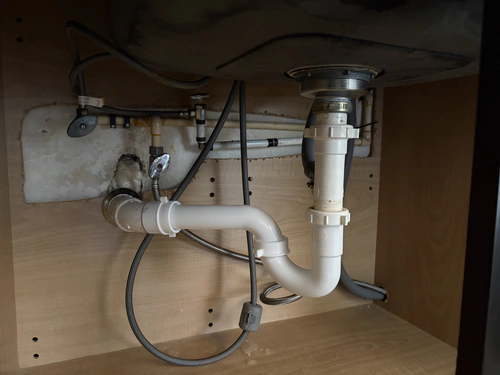

Very little you would notice, which is how it should be. The sink now drains through a new white PVC trap and trap arm into the new line in the wall.
Working from the outside kept the kitchen in one piece. The countertop, the sink and the cabinet all stayed put, so there was no carpenter to schedule afterward and no days of washing dishes in the bathroom. Inside, we only needed the space the cabinet already gave us. The trap goes together with slip nuts, which means it comes apart by hand the day a spoon goes down the drain.
The bigger change is inside the pipe. Old cast iron builds up a rough crust of scale that grabs grease and food. New PVC is smooth, and a waste arm this size is set to fall about a quarter inch per foot, so water leaves the sink instead of lingering.
When the cast iron trouble is under the floor rather than in a wall, the job looks very different. Our cast iron sewer replacement in Maitland shows that version.
Should You Replace One Section of Cast Iron or Repipe the Drains?
If the rest of the cast iron is sound, replace the failed section. If it is failing in more than one place, it is time to look at the whole system.
This house was the first kind. The damage sat in the kitchen waste arm, the piece that handles hot, greasy water every day, while the stack we tied into was still solid enough to hold a coupling, which is the test we use on site. Cast iron that crumbles under the saw will not hold a clamp. That changes the conversation fast.
Still, a pipe that rotted through in one spot tells you something about pipe the same age elsewhere in the house. If you own an older home around Lake Eola, Thornton Park or College Park and you are dealing with slow drains, sewer smells, or damp patches low on the walls, ask us to run a camera through the lines first. Sometimes the answer is one more spot repair. Sometimes it is house repiping, and we will tell you plainly which one your house needs.
For plumbing in Orlando, from downtown out to the suburbs, call the shop at (407) 273-6260. You get the price before any work starts.
